Productdetails:
|
Stroomtype: | Elektronisch | Motor: | Panasonic-sevormotor |
---|---|---|---|
Bedieningsmethode: | Computer Windows -werking | Capaciteitsopties: | 5,10,20,50,100.200.500,1000,2000,5000 kg optioneel |
Hartinfarct: | 800mm (zonder inrichting) | Testsnelheid: | 0.5~500mm/min (controle door toetsenbord die inputing) |
Nauwkeurigheid: | 0,5% | Oplossing: | 1/250.000 |
Stroomvoorziening: | 220V/50HZ of 110V/60HZ | Afmetingen: | 80*50*150cm |
Effectieve trekkracht: | 1200 mm (bevat grepen) | Efficiënte testbreedte: | 400 mm, 320 mm |
Snelheidsnauwkeurigheid: | Minder dan ±0.5% | Verplaatsing nauwkeurigheid: | Minder dan ±0.5% |
Gewicht: | Ongeveer 145 kg | ||
Markeren: | 220V/50HZ Power Universal Testing Machine,80×50×150cm Dimension Universal Testing Machine,ASTM ISO EN JS Standard Universal Testing Machine |

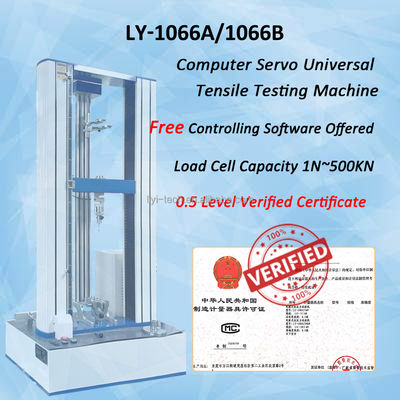

Model | LY-1066A | LY-1066B |
---|---|---|
Capacity | 1,2,5,10,20,50,100,200,500,1000,2000N (optional/customizable) | |

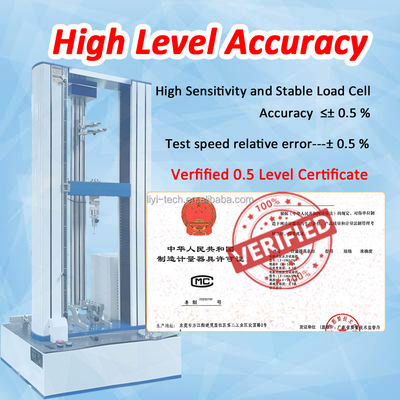

Accuracy level | 0.5% | |
Effective pull space | 1200mm (including grips) | |
Effective test width | 400mm | 320mm |
Test force resolution | 1/250,000 | 1/150,000 |
Test Speed | 0.1~500mm/min | 50~500mm/min |
Motor system | Panasonic servo motor + drive | AC motor + drive |
Dimension | 80×50×150cm | |
Weight | Approx. 145 kg | |
Power | 1Ø, 220V/50HZ |
