Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

Certificaat
China Dongguan Liyi Environmental Technology Co., Ltd. certificaten
China Dongguan Liyi Environmental Technology Co., Ltd. certificaten
Klantenoverzichten
Wij hebben machines gisteren ontvangen! Het was groot om met u te werken! In gehechtheid de thank-you brief voor u en werkgever youк, die door mijn CEO werd ondertekend.

—— Барабан Григорий

Wij hebben een goede blik bij glossmeter gehad & houden wij van wat wij zien. De resultaten zijn respectably dicht bij specificatiekaliberbepaling. Wij houden van het.

—— Davebrouwer

Wij hebben de machine ontvangen, danken u voor geduldig het zijn met me tijdens dit keer, heb ik geen gebruik het nog, maar ik ben zeker dat het o.k. zal zijn.

—— Jose Zikasky

Ik houd van uw klantendienst, snel reactie en het zijn nadenkend de hele tijd. De op tijd geleverde machine. Dank u.

—— Elizebath Roberts

Ik ben online Chatten Nu

Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed
Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

Grote Afbeelding :  Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

Productdetails:
Plaats van herkomst: CHINA
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1

Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

beschrijving
Nauwkeurigheid: 0,5% Stroom: 750W
Beschermingsklasse: IP56 Spanning: 380V, 220V, 240V, 110V
Capaciteit: 1,2,5,10,20,50,100.200.500,1000,2000 kg (5000kg, 10T aanpasbaar) Effectieve trekkracht: 1200 mm (bevat grepen)
Gewicht: 145 KG Stroomvoorziening: 220V/50Hz
Testsnelheid: 0,5 ~ 1000 mm/min Testbereik: MAXIMUM 400mm
Oplossing: 1/250.000 Motor: Panasonic Servo Motor
Max laadvermogen: 5000 kg Kracht relatieve fout: ± 0,5%
Testslag: 1200 mm
Markeren:

1200mm Effective Pull Space Universal Testing Machine

,

220V/50HZ Power Tensile Testing Machine

,

0.5~1000mm/min Test Speed UTM

Liyi UTM Tension Compression Peel Strength Universal Tensile Testing Machine

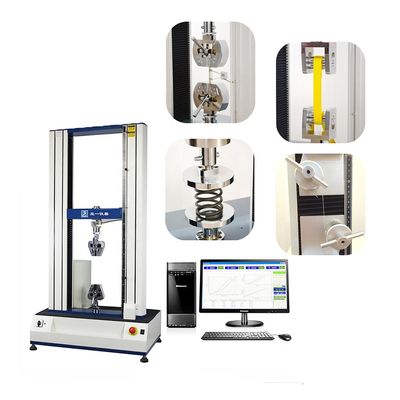

The Liyi UTM Universal Tensile Testing Machine is designed for comprehensive material testing, including tensile strength, compression, elongation, stripping force, tear strength, and bending strength measurements for both finished and semi-finished products.
Technical Specifications

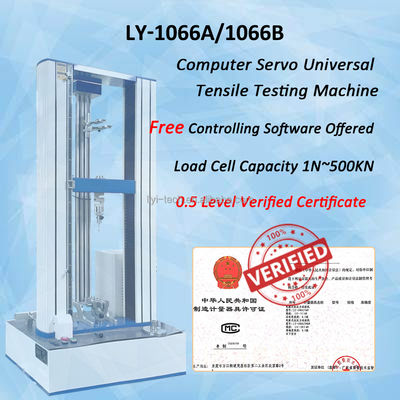

Model LY-1066A LY-1066B
Accuracy Class 0.5 (with Verified Certificate)
Optional Load Cell 1,2,5,10,20,50,100,200,500,1000,2000,5000kg
Max Load Capacity 5000KG 2000KG
Resolution 1/250,000 1/150,000
Force Relative Error ±0.5%
Test Speed Range 0.1~500mm/min 50~500mm/min
Motor Panasonic Servo Motor AC Inverter Motor
Test Stroke (contain clamps) 1200mm
Product Images
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.
Our product range includes simulated environmental testers, plastic and rubber testers, and other material testing equipment. Based in Dongguan, Guangdong province (China's manufacturing center), we also maintain an office in Kunshan, Jiangsu province to better serve Eastern China markets.
Frequently Asked Questions
Are you the manufacturer? What after-sales service and warranty do you offer?
Yes, we are a professional manufacturer of testing equipment. All machines come with a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during this period and offer technical support via email or video chat, with solutions typically provided within 24-48 hours of problem identification.
What is your standard delivery time?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. We can accommodate urgent requests with special arrangements.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to customer requirements, including OEM/ODM services with your logo on the equipment.
How do I install and use the machine?
Most machines are shipped fully assembled - just connect the power cable to begin use. We provide English operation videos via email and can assist with on-site installation when necessary.
